LED Film Screen | Transparent Display, Innovative Advertising Solution
Ultra-High Transparency | Ultra-Thin & Lightweight | High Definition & Brightness | Flexible Installation

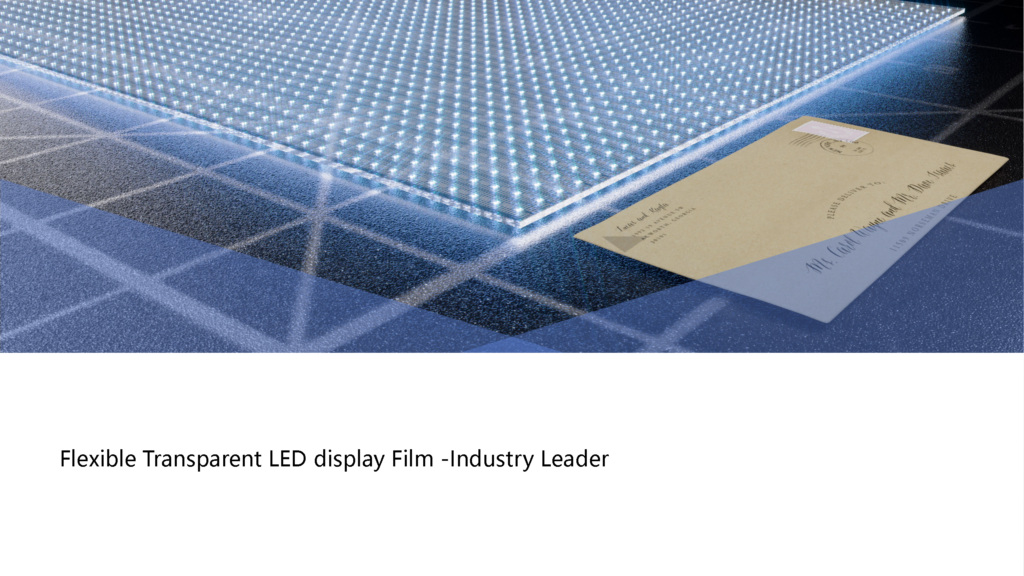

What is an LED Film Screen?

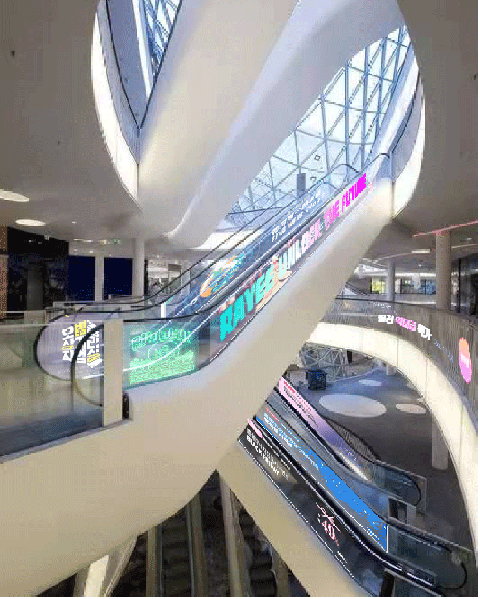

An LED film screen is an ultra-thin, high-transparency LED display that can be directly attached to glass facades or shop windows, delivering high-definition visuals while maintaining indoor lighting and exterior aesthetics. It is widely used in shopping mall windows, glass curtain walls, car showrooms, flagship stores, exhibitions, and displays.
✅ Ultra-High Transparency (60%-90% transparency, does not obstruct the view)
✅ Ultra-Thin & Lightweight (1-3mm thickness, lightweight, easy to install)
✅ High Definition & Brightness (high contrast, high refresh rate, clear visibility day and night)
✅ High Refresh Rate (3840Hz+, smooth and flicker-free display)

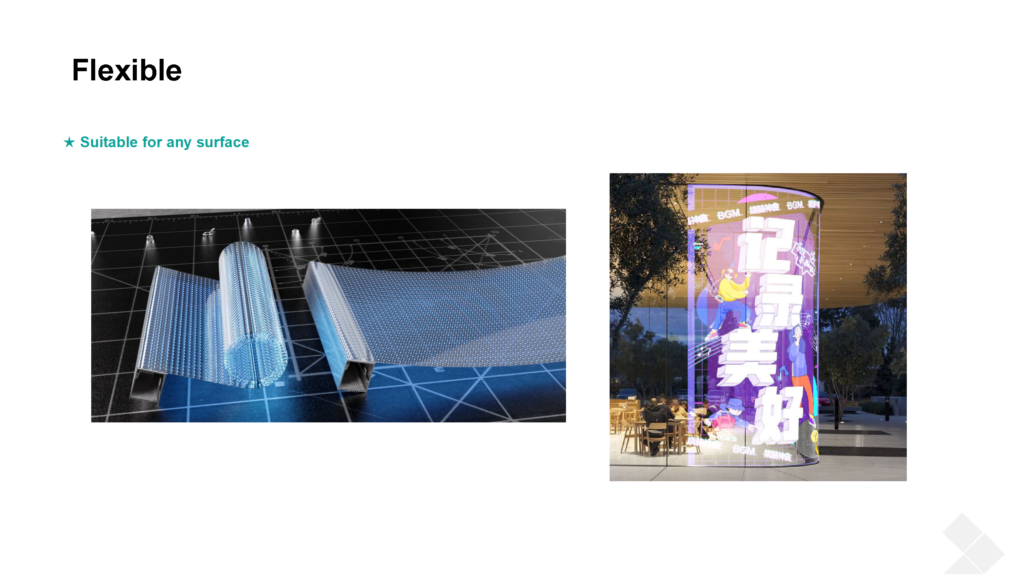

✅ Flexible Sizing & Customization (cuttable design, adaptable to various glass facades)
Parameter
Model | P5 | P6.25 | P8 | P10 |
Module Size (mm) | 600*200 | 600*237 | 600*240 | 600*240 |
LED Light | REE :1313 | REE :1313 | REE :1313 | REE :1313 |
Brightness | 1500cd/㎡ | 1500cd/㎡ | 1500cd/㎡ | 1500cd/㎡ |
Pixel Composition | R1G1B1 | R1G1B1 | R1G1B1 | R1G1B1 |
Pixel Spacing (mm)） | 5*5 | 6.25*6.25 | 8*8 | 10*10 |
Module Pixel | 120*40=4800 | 96*38=3648 | 75*30=2250 | 60*24=1440 |
Pixel/㎡ | 40000 | 25600 | 15625 | 10000 |
Permeability | 93% | 95% | 97% | 98% |
Angle of View° | 160 | 160 | 160 | 160 |
Input Voltage | DC 5V | DC 5V | DC 5V | DC 5V |
Peak Power | 340w/㎡ | 200w/㎡ | 130w/㎡ | 85w/㎡ |
Average Power | 170w/㎡ | 100w/㎡ | 65w/㎡ | 42w/㎡ |
Work Environment | Temperature-20~55℃ Humidity10-90% | Temperature-20~55℃ Humidity10-90% | Temperature-20~55℃ Humidity10-90% | Temperature-20~55℃ Humidity10-90% |
Weight | 0.7kg | 0.7kg | 0.7kg | 0.7kg |

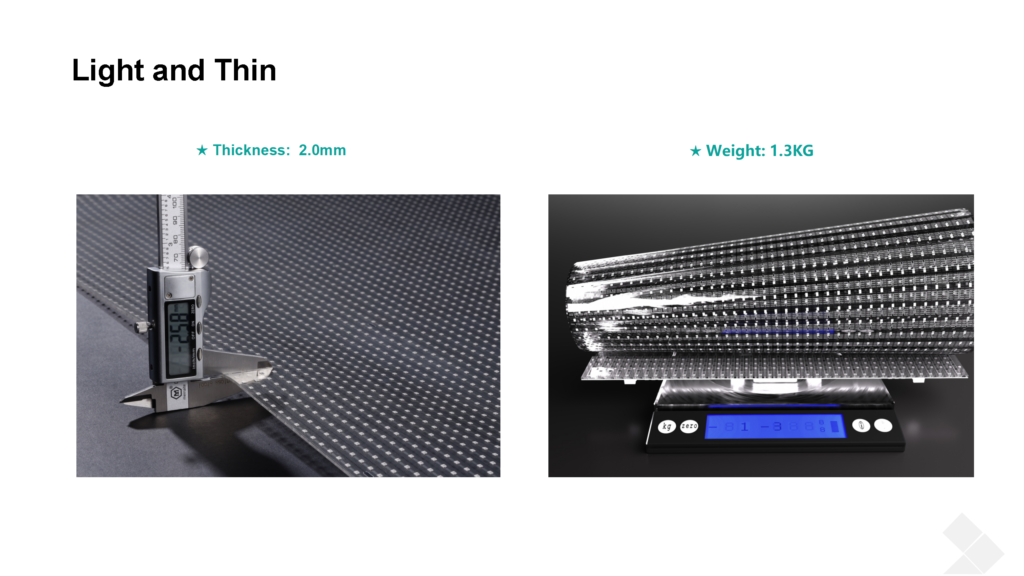

Thickness | 2.0mm | 2.0mm | 2.0mm | 2.0mm |
Drive Mode | Static State | Static State | Static State | Static State |
Control System | Onbon | Onbon | Onbon | Onbon |
Typical Value of Life | 100000H | 100000H | 100000H | 100000H |

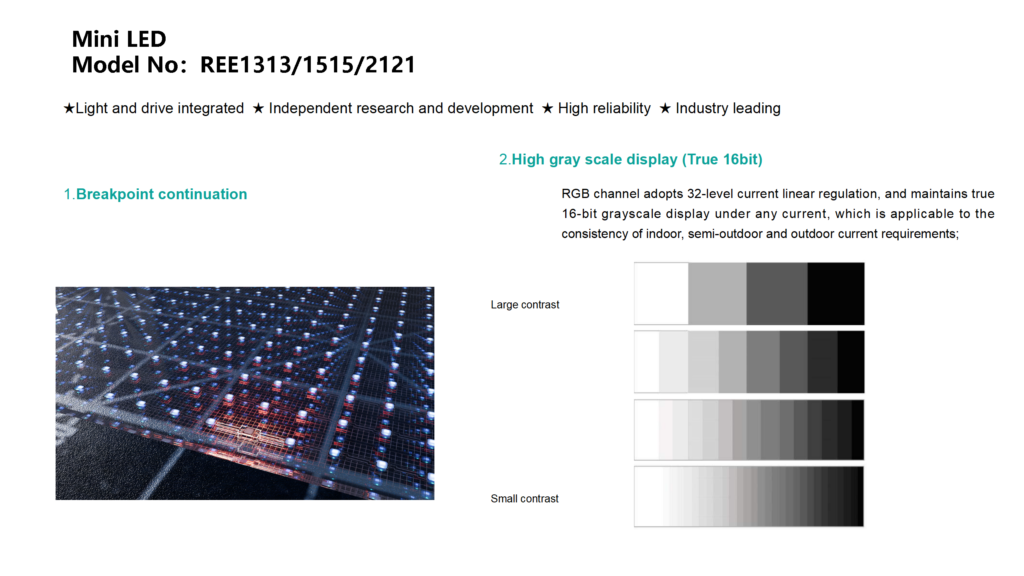

Grayscale Level | 16bit | 16bit | 16bit | 16bit |
Refresh Rate | 3840 Hz | 3840 Hz | 3840 Hz | 3840 Hz |
Packing Method | （L）710mm × （W）300mm ×（H）110mm | |||
Total Weight (Module+Packaing） | 2kg | 2kg | 2kg | 2kg |
Projects
Glass Facades
Maintains visibility while seamlessly integrating with architectural design
Exhibitions & Museums
Creative displays to enhance interactive experiences

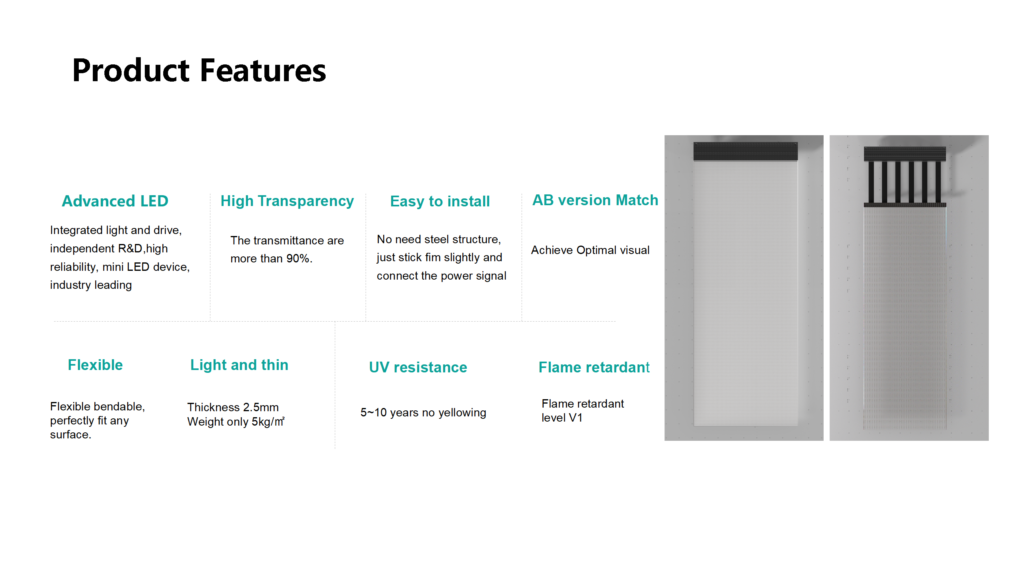

🔹 Why Choose Our LED Transparent Film Display?
🌟 Custom LED Configuration – Tailored LED design to meet specific project requirements, ensuring high brightness & stability
🔧 Flexible Installation – Adhesive design, no additional brackets or structural modifications required
📡 Remote Smart Control – Supports Wi-Fi/4G/USB operation for instant content updates
💼 Professional After-Sales Support – Installation guidance & technical support for a worry-free experience
